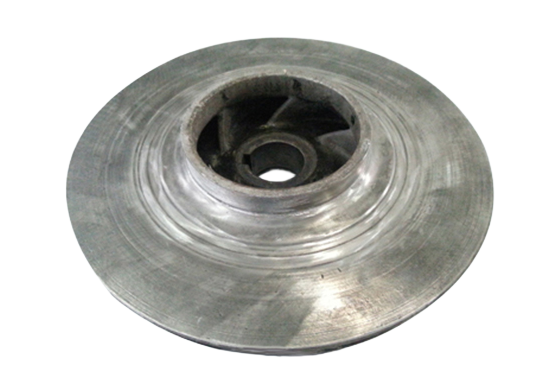

Hastelloy, a nickel-based alloy, is widely used for impellers in demanding industries such as chemical processing, aerospace, and power generation due to its exceptional corrosion resistance in harsh environments. However, machining processes can compromise this resistance if not carefully managed. This article provides a detailed, technical guide on how to maintain the corrosion-resistant properties of Hastelloy impellers after machining, focusing on practical, experience-based methods and precise parameters to ensure reliability and performance.
Understanding Hastelloy and Its Corrosion Resistance
Hastelloy alloys, such as C-22, C-276, and X, are engineered to withstand aggressive corrosive environments, including exposure to acids, chlorides, and high temperatures. Their corrosion resistance is attributed to a high nickel content (50-60%), combined with molybdenum (13-16%), chromium (15-22%), and tungsten (up to 4%), which form a protective chromium oxide layer on the surface. This layer acts as a barrier against corrosive agents. Machining processes like cutting, grinding, or polishing can disrupt this layer, introduce contaminants, or alter surface properties, potentially reducing corrosion resistance.
To preserve the integrity of Hastelloy impellers, it is essential to understand how machining affects the alloy’s surface. Improper machining can lead to work hardening, micro-cracks, or embedded foreign particles, which may serve as initiation points for corrosion, such as pitting, crevice corrosion, or stress corrosion cracking. The objective is to maintain the alloy’s passivation layer and prevent conditions that promote corrosion.
Machining Techniques to Preserve Corrosion Resistance
Machining Hastelloy requires careful selection of tools, parameters, and coolants to minimize surface damage and preserve corrosion resistance. Below are key considerations and specific parameters for effective machining.
Tool Selection and Material
Carbide tools with high wear resistance, such as those coated with titanium nitride (TiN) or titanium aluminum nitride (TiAlN), are recommended for machining Hastelloy. These coatings reduce tool wear and prevent adhesion of the alloy to the tool, which could cause surface irregularities. Tool geometry should include a positive rake angle (5-10°) to reduce cutting forces and heat generation, minimizing thermal damage to the surface.
Schnittparameter
Precise control of cutting parameters is critical to avoid excessive heat buildup and work hardening. Recommended parameters are:
| Parameter | Recommended Value |
|---|---|
| Schnittgeschwindigkeit | 20-40 m/min for roughing, 50-70 m/min for finishing |
| Vorschubgeschwindigkeit | 0.05-0.15 mm/rev for turning, 0.02-0.08 mm/tooth for milling |
| Schnitttiefe | 0.5-2 mm for roughing, 0.1-0.5 mm for finishing |
These parameters minimize surface defects while maintaining dimensional accuracy. Low cutting speeds and feeds are essential to prevent excessive heat, which can alter the microstructure and reduce corrosion resistance.
Coolant Use
Water-based coolants with high lubricity, such as emulsions with 5-10% oil concentration, are preferred. Avoid chlorine-containing coolants, as chlorine can react with Hastelloy, leading to pitting corrosion. Coolant pressure should be maintained at 10-15 bar to ensure effective chip evacuation and cooling without causing surface erosion.
Surface Treatment Post-Machining
Post-machining surface treatments are vital to restoring and enhancing the corrosion resistance of Hastelloy impellers. These treatments remove contaminants, repair surface damage, and reinforce the passivation layer.
Passivierung
Passivation involves treating the impeller surface with a chemical solution to remove iron contaminants and promote the formation of a uniform chromium oxide layer. A common passivation process uses a nitric acid solution (20-40% concentration) at 50-60°C for 30-60 minutes. This should be followed by thorough rinsing with deionized water to remove residual acid. For Hastelloy C-22, passivation can improve corrosion resistance by up to 30% in chloride-rich environments, based on industry testing.
Elektropolieren
Electropolishing smooths the surface by selectively removing material at a microscopic level, achieving a surface roughness of Ra < 0.4 µm. This process uses an electrolyte solution (typically phosphoric acid-based) and a current density of 0.5-1 A/cm² for 5-15 minutes. Electropolishing removes micro-cracks and embedded particles, significantly improving resistance to pitting and crevice corrosion.
Mechanical Polishing
If electropolishing is not feasible, mechanical polishing with fine abrasives (600-1200 grit) can achieve a smooth surface. Care must be taken to avoid embedding abrasive particles, which can act as corrosion initiation sites. A final polishing step with a non-abrasive cloth and a neutral polishing compound is recommended to ensure a clean, smooth surface.
Qualitätskontrolle und Prüfung
Ensuring corrosion resistance requires rigorous quality control and testing post-machining and surface treatment. Key methods include:
Surface Inspection
Visual and microscopic inspections (using 10x-50x magnification) should be conducted to detect surface defects such as scratches, pits, or embedded particles. Surface roughness should be measured using a profilometer, targeting Ra < 0.8 µm for optimal corrosion resistance.
Corrosion Testing
Corrosion tests, such as ASTM G28 (for intergranular corrosion) or ASTM G48 (for pitting and crevice corrosion), should be performed to verify the impeller’s performance in simulated environments. For example, ASTM G48 Method A involves immersing the impeller in a 6% ferric chloride solution at 50°C for 72 hours to assess pitting resistance. A corrosion rate of less than 0.1 mm/year is typically acceptable for Hastelloy impellers.
Chemical Composition Verification
X-ray fluorescence (XRF) or optical emission spectroscopy (OES) should be used to confirm that the alloy composition remains within specifications after machining, ensuring no contamination has occurred.
Practical Considerations for Implementation
Implementing these techniques requires careful planning and adherence to best practices. Below are practical considerations to ensure success:
| Aspekt | Recommendation |
|---|---|
| Cleanliness | Maintain a clean machining environment to prevent contamination. Use dedicated tools for Hastelloy to avoid cross-contamination with other metals. |
| Bedienerschulung | Train operators on Hastelloy-specific machining and surface treatment techniques to ensure consistency and precision. |
| Documentation | Record all machining parameters, surface treatment conditions, and test results to ensure traceability and compliance with industry standards. |
By adhering to these practices, manufacturers can consistently produce Hastelloy impellers with optimal corrosion resistance, minimizing the risk of premature failure in service.
Schlussfolgerung
Ensuring the corrosion resistance of Hastelloy impellers post-machining involves a systematic approach that combines precise machining techniques, effective surface treatments, and rigorous quality control. By selecting appropriate tools, controlling cutting parameters, applying passivation or electropolishing, and conducting thorough testing, manufacturers can maintain the alloy’s inherent corrosion resistance. These methods, grounded in technical expertise and industry experience, ensure that Hastelloy impellers perform reliably in demanding environments, delivering long-term durability and safety.
