Concentricity is a critical parameter in the machining of vacuum pump impellers, directly impacting the performance, efficiency, and durability of the pump. Precise concentricity detection ensures that impellers align accurately with the rotor shaft, reducing vibration, wear, and energy loss. This article provides a comprehensive, technical guide to improving concentricity detection accuracy in vacuum pump impeller machining. It focuses on equipment calibration, measurement techniques, process optimization, and quality control, supported by specific parameters and systematic approaches to achieve high-precision results.

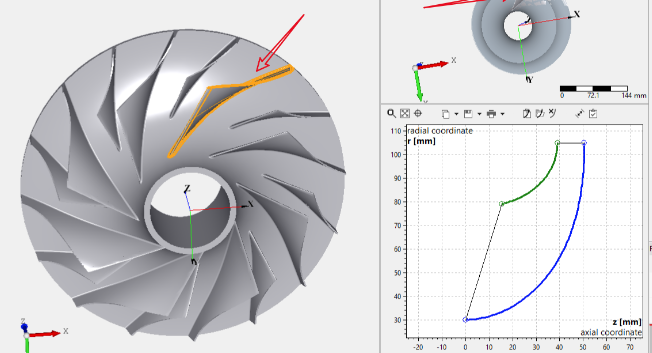

Understanding Concentricity in Vacuum Pump Impeller Machining
Concentricity measures how well the center of a machined feature, such as an impeller’s hub or blade surfaces, aligns with a reference axis, typically the rotor shaft. In vacuum pump impellers, concentricity tolerances are stringent, often requiring deviations within 0.01–0.05 mm to ensure optimal performance. Poor concentricity can lead to unbalanced rotation, increased mechanical stress, and reduced pump efficiency. Accurate detection requires precise measurement tools, calibrated equipment, and controlled machining processes.
Key factors affecting concentricity include tool wear, machine stability, fixturing accuracy, and operator skill. Addressing these factors systematically is essential for improving detection accuracy. The following sections detail practical methods to enhance concentricity detection, grounded in technical expertise and industry best practices.
Selecting High-Precision Measurement Tools
The choice of measurement tools is fundamental to achieving accurate concentricity detection. Common tools include coordinate measuring machines (CMMs), laser scanners, and dial indicators. Each tool has specific applications and precision levels, which must align with the tolerances required for vacuum pump impellers.
| Measurement Tool | Accuracy (mm) | Application | Beschränkungen |
|---|---|---|---|
| Koordinatenmessmaschine (CMM) | 0.001–0.005 | High-precision measurement of complex geometries | High cost, requires skilled operation |
| Laser Scanner | 0.002–0.01 | Non-contact measurement for delicate surfaces | Sensitive to surface finish and reflections |
| Dial Indicator | 0.01–0.05 | Simple, cost-effective for basic checks | Limited to simple geometries, operator-dependent |
For vacuum pump impellers, CMMs are often preferred due to their high accuracy and ability to measure complex geometries, such as curved blade surfaces and hub alignments. Ensure the CMM probe has a resolution of at least 0.001 mm and is calibrated to a traceable standard, such as ISO 10360. Laser scanners are suitable for non-contact measurement of intricate impeller surfaces, but their accuracy depends on surface reflectivity and environmental conditions. Dial indicators are useful for quick checks during setup but lack the precision for final inspections.
Regular calibration of measurement tools is critical. For example, CMMs should be calibrated every 6–12 months, depending on usage, to maintain accuracy within 0.002 mm. Environmental controls, such as maintaining a temperature of 20 ± 1°C and humidity below 50%, are also essential to minimize thermal expansion and measurement errors.
Optimizing Machine Setup and Calibration
Machine setup directly influences concentricity accuracy. CNC machines used for vacuum pump impeller machining must be calibrated to ensure spindle runout is below 0.005 mm. Spindle runout can be checked using a test mandrel and dial indicator, with measurements taken at multiple points along the spindle’s rotation.
Fixturing is another critical aspect. Use precision fixtures with runout tolerances below 0.003 mm to secure the impeller during machining and inspection. Vacuum chucks or magnetic fixtures can reduce clamping errors, but they must be cleaned and inspected regularly to prevent debris-induced misalignment. For example, a speck of debris as small as 0.01 mm can cause detectable concentricity deviations.
Tooling selection also plays a role. Use high-precision cutting tools with concentricity tolerances below 0.002 mm, and inspect tools for wear after every 50–100 machining cycles. Worn tools can introduce vibrations, leading to concentricity errors of up to 0.02 mm. Implement a tool management system to track wear and ensure timely replacement.
Enhancing Measurement Techniques
Accurate concentricity measurement requires standardized techniques. For CMM measurements, use a minimum of 12 probe points per feature to capture sufficient data for concentricity calculations. The probing sequence should follow a star pattern to evenly distribute measurement points and reduce bias. Software such as PC-DMIS or Calypso can process these points to calculate concentricity within 0.001 mm accuracy.
For laser scanners, ensure the impeller surface is free of oil or contaminants, as these can scatter laser beams and reduce accuracy. Use a scanning resolution of 0.005 mm or better, and perform multiple scans to average out environmental noise. When using dial indicators, rotate the impeller slowly (e.g., 10–20 RPM) to avoid dynamic errors, and take measurements at multiple axial positions to detect taper or misalignment.
Operator training is crucial. Train personnel to follow standardized measurement protocols and interpret results correctly. For example, a common error is misinterpreting concentricity as runout. Concentricity measures the alignment of two axes, while runout includes both concentricity and surface irregularities. Ensure operators understand this distinction to avoid incorrect adjustments.
Process Optimization for Consistent Results
Consistent machining processes are essential for maintaining concentricity. Implement statistical process control (SPC) to monitor key parameters, such as tool wear, spindle speed, and feed rate. For example, maintain spindle speeds within 5000–10,000 RPM and feed rates below 0.1 mm/rev for finishing cuts to minimize vibrations that affect concentricity.
Use in-process gauging to detect deviations during machining. For instance, install laser micrometers to measure impeller dimensions in real-time, with a resolution of 0.001 mm. If deviations exceed 0.01 mm, pause the process and recalibrate the machine. This proactive approach reduces scrap rates and ensures consistent concentricity.
Material selection also impacts concentricity. Vacuum pump impellers are often made from stainless steel or titanium alloys, which have different machining characteristics. For stainless steel, use coolant to reduce thermal expansion, which can cause concentricity errors of up to 0.015 mm. For titanium, use lower cutting speeds (e.g., 50–80 m/min) to minimize tool deflection.
Quality Control and Documentation
Robust quality control (QC) systems ensure reliable concentricity detection. Implement a 100% inspection policy for critical batches, using CMMs for final measurements. For larger production runs, use sampling plans based on ISO 2859-1, with an acceptable quality level (AQL) of 0.65 for concentricity defects.
Maintain detailed records of measurement data, including probe calibration logs, environmental conditions, and operator notes. Use software to track trends in concentricity deviations over time, enabling predictive maintenance. For example, if concentricity errors increase by 0.005 mm over 100 cycles, schedule machine maintenance to address potential spindle or fixture issues.
Cross-verify measurements using multiple tools (e.g., CMM and laser scanner) to ensure consistency. If discrepancies exceed 0.002 mm, investigate potential causes, such as tool wear or environmental factors, and adjust accordingly.
Common Issues and Solutions
While specific issues may vary, some common problems in concentricity detection for impellers include:
| Issue | Cause | Lösung |
|---|---|---|
| Inconsistent Measurements | Poor fixture alignment or tool wear | Recalibrate fixtures to 0.003 mm runout, replace worn tools |
| Environmental Interference | Temperature fluctuations or vibrations | Maintain 20 ± 1°C, isolate machines from external vibrations |
| Operator Error | Incorrect measurement technique | Train operators on standardized protocols, verify with QC audits |
Addressing these issues requires a combination of equipment maintenance, operator training, and process control. Regular audits of the machining and measurement processes can identify and resolve issues before they impact production quality.
Schlussfolgerung
Improving concentricity detection accuracy in vacuum pump impeller machining requires a systematic approach, combining high-precision measurement tools, optimized machine setup, standardized measurement techniques, and robust quality control. By maintaining tolerances within 0.01–0.05 mm, using calibrated equipment, and implementing process controls, manufacturers can achieve consistent, high-quality results. Regular training, documentation, and proactive maintenance further enhance reliability, ensuring vacuum pump impellers meet stringent performance requirements.
