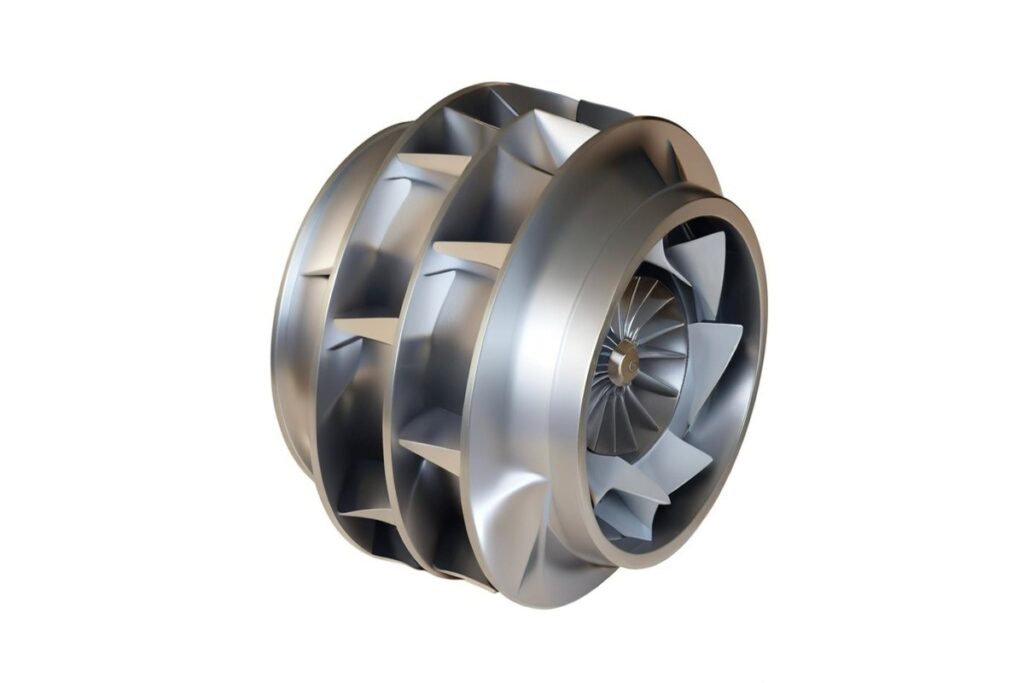

Micro-arc oxidation (MAO) is a specialized electrochemical surface treatment used to enhance the performance of titanium alloy components, such as closed impellers. This process forms a ceramic oxide coating that improves wear resistance, corrosion resistance, and surface hardness. For titanium alloy closed impellers, which are critical in industries like aerospace, marine, and energy, MAO ensures durability under harsh operating conditions. This article outlines the key points of the MAO process, focusing on technical parameters, equipment considerations, and procedural details to achieve optimal results.
Material Preparation for Titanium Alloy Closed Impellers
Proper preparation of the titanium alloy closed impeller is essential for successful MAO processing. Titanium alloys, such as TC4 (Ti-6Al-4V), are commonly used due to their high strength-to-weight ratio and corrosion resistance. However, their complex geometry and surface characteristics require meticulous pre-treatment to ensure uniform coating formation.
Surface cleaning is the first step. Impellers are typically machined using CNC techniques, which may leave residual cutting fluids, oxides, or contaminants. These must be removed through ultrasonic cleaning in acetone or ethanol for 10-15 minutes, followed by rinsing in deionized water. The surface is then polished to achieve a roughness (Ra) of approximately 2-3 µm, using abrasive papers with grits ranging from #280 to #1200. This roughness level promotes adhesion of the MAO coating while maintaining the impeller’s dimensional accuracy.
Chemical etching may be applied to remove the native oxide layer on Titanlegierungen. A solution of 5% HF and 15% HNO3 is often used for 1-2 minutes, followed by thorough rinsing. This step enhances the reactivity of the surface during MAO, ensuring consistent coating growth. For closed impellers, care must be taken to ensure that etching is uniform across intricate internal surfaces, which may require specialized fixtures to maintain solution flow.
Electrolyte Composition and Configuration
The electrolyte is a critical factor in the MAO process, as it determines the coating’s composition, structure, and properties. For titanium alloy closed impellers, electrolytes are typically aqueous solutions containing alkaline compounds, such as sodium silicate (Na2SiO3), sodium phosphate (Na3PO4), or calcium acetate. These compounds facilitate the formation of a ceramic oxide layer rich in titanium dioxide (TiO2) in anatase or rutile phases.
A common electrolyte composition includes 10-20 g/L Na2SiO3 and 5-10 g/L NaOH, adjusted to a pH of 12-13. The addition of 2-5 g/L calcium acetate can enhance the coating’s bioactivity, which is beneficial for impellers used in marine environments. The electrolyte temperature is maintained at 20-30°C to prevent excessive heating during processing, which could lead to coating defects.
For closed impellers, the electrolyte must penetrate complex internal geometries. This requires careful design of the MAO setup, including the use of auxiliary electrodes or agitation systems to ensure uniform ion distribution. The electrolyte’s electrical conductivity, typically 10-20 mS/cm, is monitored to maintain process stability.
| Electrolyte Component | Concentration (g/L) | Funktion |
|---|---|---|
| Sodium Silicate (Na2SiO3) | 10-20 | Promotes ceramic oxide formation |
| Sodium Hydroxide (NaOH) | 5-10 | Adjusts pH, enhances alkalinity |
| Calcium Acetate | 2-5 | Improves bioactivity and coating adhesion |
Electrical Parameters and Power Supply Configuration
The MAO process relies on high-voltage electrical discharges to form the ceramic coating. For titanium alloy closed impellers, precise control of electrical parameters is critical to achieving a uniform and defect-free coating. The power supply typically operates in galvanostatic or potentiostatic mode, with voltages ranging from 400-800 V and current densities between 100-300 mA/cm².
A pulsed power supply is preferred, as it minimizes thermal stress and prevents coating cracking. Common settings include a frequency of 100-1000 Hz and a duty cycle of 20-60%. For example, a frequency of 500 Hz with a 40% duty cycle has been shown to produce coatings with low porosity and high compactness. The treatment duration is typically 5-15 minutes, depending on the desired coating thickness (10-20 µm).
The power supply must be capable of delivering stable output despite the high resistance of the oxide layer as it forms. A maximum current of 50-200 A is often used, depending on the impeller’s surface area. For complex geometries, the anode-to-cathode surface ratio is maintained at 1:10 to ensure uniform discharge distribution.
| Parameter | Range | Impact |
|---|---|---|
| Voltage | 400-800 V | Controls discharge intensity and coating thickness |
| Current Density | 100-300 mA/cm² | Affects coating growth rate and porosity |
| Frequency | 100-1000 Hz | Influences coating compactness and thermal stress |
| Duty Cycle | 20-60% | Regulates energy input and coating uniformity |
Equipment and Setup Considerations
The MAO setup for titanium alloy closed impellers requires specialized equipment to accommodate their complex geometry and ensure process reliability. The core components include the MAO tank, power supply, cooling system, and electrode configuration.
The MAO tank is typically constructed from polypropylene (PP) or polyvinyl chloride (PVC), reinforced with stainless steel for durability. The tank is equipped with a cooling system to maintain electrolyte temperature below 30°C, using external cooling coils or a heat exchanger. For closed impellers, the tank design must allow for complete submersion and electrolyte flow through internal passages, which may require custom fixtures or jigs made from titanium or aluminum.
The cathode is usually a stainless steel plate or mesh, positioned to ensure uniform electric field distribution. The impeller itself serves as the anode, mounted in a holder that exposes all surfaces to the electrolyte. Auxiliary electrodes may be used to enhance discharge uniformity in recessed areas. The power supply is connected to a control unit that monitors voltage, current, and pulse parameters in real-time, ensuring process stability.
Safety considerations are paramount due to the high voltages involved. The setup must include insulation barriers, grounding systems, and emergency shut-off mechanisms to protect operators.
Coating Formation and Characteristics
During MAO, the titanium alloy surface undergoes electrochemical oxidation, forming a ceramic coating composed primarily of TiO2 in anatase and rutile phases. The coating grows both inward and outward from the substrate, achieving thicknesses of 10-20 µm within 5-15 minutes. The process involves micro-arc discharges that create a porous topography, with pore sizes ranging from 1-5 µm.
The coating’s hardness typically ranges from 1000-2000 HV, significantly higher than the substrate’s 300-400 HV. This enhances the impeller’s wear resistance, critical for applications involving abrasive fluids or high-speed rotation. The coating also improves corrosion resistance, with insulation resistance reaching up to 100 MΩ, making it suitable for marine and chemical environments.
The coating’s phase composition can be tailored by adjusting electrolyte composition and electrical parameters. For example, higher silicate concentrations promote anatase formation, while longer treatment times increase rutile content. The coating’s adhesion strength is enhanced by its in-situ growth, ensuring a strong metallurgical bond with the substrate.
Post-Treatment and Quality Control
After MAO, the impeller is rinsed in deionized water to remove residual electrolyte and dried using compressed air. Post-treatment may involve blasting with glass beads to remove loose outer layers, improving surface smoothness while retaining the coating’s protective properties. This is particularly important for impellers, where surface irregularities can affect aerodynamic performance.
Quality control involves several tests to verify coating performance. Scanning electron microscopy (SEM) is used to assess surface morphology and pore distribution. X-ray diffraction (XRD) confirms the presence of anatase and rutile phases, while energy-dispersive X-ray spectroscopy (EDS) analyzes chemical composition. Coating thickness is measured using a micrometer or eddy current gauge, targeting 10-20 µm. Hardness is evaluated using a Vickers microhardness tester, and adhesion strength is tested via scratch or pull-off methods.
Corrosion resistance is assessed through potentiodynamic polarization in simulated environments, such as 3.5% NaCl for marine applications. Wear resistance is evaluated using a ball-on-disk tribometer, ensuring the coating withstands operational stresses.
Practical Considerations for Implementation
Implementing MAO for titanium alloy closed impellers requires careful planning to ensure repeatability and cost-effectiveness. The process is scalable, but the complex geometry of impellers demands customized setups. Key considerations include fixture design to ensure uniform coating, electrolyte management to prevent degradation, and process monitoring to maintain consistency.
Operator training is essential due to the technical complexity of MAO. Technicians must understand the interplay of electrical parameters, electrolyte chemistry, and equipment setup. Regular maintenance of the MAO system, including cleaning of tanks and calibration of power supplies, is necessary to prevent process deviations.
Environmental considerations are also important. MAO is relatively eco-friendly compared to other coating methods, as it uses aqueous electrolytes and produces minimal waste. However, proper disposal of used electrolytes and compliance with safety regulations are critical to sustainable operations.
Schlussfolgerung
The micro-arc oxidation process is a robust method for enhancing the performance of titanium alloy closed impellers. By carefully controlling material preparation, electrolyte composition, electrical parameters, and equipment setup, manufacturers can achieve high-quality ceramic coatings with superior hardness, wear resistance, and corrosion resistance. The detailed parameters and procedural guidelines outlined in this article provide a reliable framework for implementing MAO in industrial applications, ensuring durability and efficiency of critical components.
