Aluminium die casting is a highly efficient manufacturing process that produces complex, lightweight, and durable parts for a wide range of industries. With its ability to create intricate shapes with high precision, aluminium die casting is a preferred choice for applications requiring strength, versatility, and cost-effectiveness. This article explores the aluminium die casting process, its benefits, applications, and advanced techniques like extrusion pin technology, providing a comprehensive guide for decision-makers seeking sustainable manufacturing solutions.

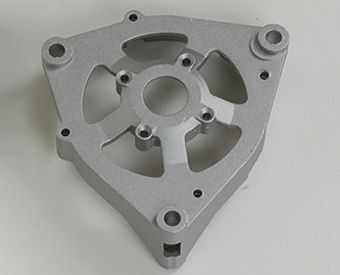

Understanding Aluminium Die Casting
Aluminium die casting is a metal casting process that involves injecting molten aluminium alloy into a steel mould (die) under high pressure. This process allows manufacturers to produce parts with tight tolerances, excellent surface finishes, and complex geometries. The process is particularly suited for high-volume production, making it a cost-effective solution for industries such as automotive, aerospace, and electronics.

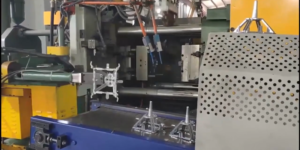

The Aluminium Die Casting Process
The aluminium die casting process consists of several key steps, each designed to ensure the production of high-quality parts. Below is an overview of the process:
- Material Preparation: Aluminium alloy ingots, typically containing elements like silicon, magnesium, or copper, are heated to temperatures between 600°C and 700°C until fully molten.
- Mould Preparation: A steel mould, or die, is designed to form the desired part shape. The mould is preheated to approximately 200°C to 300°C to ensure proper flow and solidification.
- Injection: The molten aluminium is injected into the die cavity at high pressures, typically ranging from 10,000 to 40,000 psi. This high-pressure injection ensures the molten metal fills the entire cavity, capturing fine details.
- Cooling and Solidification: The molten aluminium cools and solidifies within the die, typically within 10 to 60 seconds, depending on the part’s size and complexity.
- Ejection: Once solidified, the die opens, and the casting is ejected using ejector pins. The part may undergo trimming to remove excess material (flash).
- Finishing: Post-processing steps, such as surface treatment, machining, or coating, may be applied to achieve the desired finish or functionality.
Key Parameters in Aluminium Die Casting
To achieve optimal results, manufacturers must carefully control several parameters during the aluminium die casting process. These include:
- Alloy Composition: Common aluminium alloys used in die casting include A380, A383, and A360. Each alloy offers specific properties, such as improved corrosion resistance or enhanced strength.
- Injection Pressure: Pressures typically range from 10,000 to 40,000 psi, depending on the part’s complexity and wall thickness.
- Die Temperature: The die is maintained at 200°C to 300°C to prevent premature solidification and ensure proper metal flow.
- Cooling Time: Cooling times vary from 10 to 60 seconds, influenced by part size, wall thickness, and alloy type.
- Wall Thickness: Typical wall thicknesses for aluminium die castings range from 1.5 mm to 5 mm, allowing for lightweight yet strong components.
Benefits of Aluminium Die Casting
Aluminium die casting offers numerous advantages that make it a preferred manufacturing method for producing high-quality parts. Below are the key benefits:
Lightweight and Strong
Aluminium die cast parts are exceptionally lightweight, with densities values around 2.7 g/cm³, compared to steel’s 7.8 g/cm³. Despite their low weight, these parts exhibit high tensile strength, typically ranging from 200 to 310 MPa, making them ideal for applications in transportation, aerospace, and consumer electronics where weight reduction is critical.
High Dimensional Accuracy
The precision of aluminium die casting allows for tolerances as tight as ±0.05 mm, reducing the need for extensive machining or post-processing. This high dimensional accuracy ensures consistency across high-volume production runs, making it suitable for precision components like gearboxes and electrical enclosures.
Versatility in Design
Aluminium die casting supports the creation of complex geometries, including thin walls, intricate shapes, and integrated features like ribs or bosses. This versatility enables manufacturers to produce parts such as heat sinks, manifolds, and suspension components with minimal assembly requirements.
Cost-Effectiveness
The high production rates of aluminium die casting, with cycle times as low as 30 seconds per part, make it a cost-effective solution for large-scale manufacturing. Additionally, the longevity of steel dies—capable of producing 100,000 to 1,000,000 parts before replacement—further reduces per-part costs.
Durability and Corrosion Resistance
Aluminium naturally forms a protective oxide layer upon exposure to air, providing excellent corrosion resistance. This property, combined with the ability to withstand temperatures up to 600°C, makes aluminium die cast parts suitable for harsh environments, such as marine applications or automotive under-hood components.
Recyclability
Aluminium is 100% recyclable, with approximately 75% of all aluminium ever produced still in use today. Recycling aluminium requires only 5% of the energy needed to produce primary aluminium, making it an environmentally friendly choice for sustainable manufacturing.
Advanced Techniques: Extrusion Pin Technology
One of the challenges in aluminium die casting is managing shrinkage porosity, which can occur as the casting cools and solidifies. Shrinkage porosity may lead to defects such as exposed porosity on machined surfaces or leak paths in pressure-sealed components. To address this issue, manufacturers employ advanced techniques like extrusion pin technology.
How Extrusion Pin Technology Works
Extrusion pin technology involves the use of specially designed pins that are inserted into the semi-solid aluminium casting during the cooling process. These pins displace material at extremely high pressures, typically exceeding 50,000 psi, to increase the density and integrity of the casting in critical areas. The key steps include:
- Pin Insertion: As the casting cools and reaches a semi-solid state (around 500°C to 600°C), extrusion pins are deployed into targeted areas of the die cavity.
- Material Displacement: The pins apply localized pressure, compacting the aluminium and eliminating voids or porosity in heavy mass areas.
- Cooling Completion: The casting continues to cool, and the pins are retracted, leaving a dense, defect-free structure.
This technique is particularly effective for producing leak-free castings and components requiring repeatable pressure sealing, such as hydraulic cylinders and valve bodies.
Benefits of Extrusion Pin Technology
Extrusion pin technology offers several advantages, including:
- Reduced Porosity: By compacting the material, extrusion pins minimize shrinkage porosity, improving the structural integrity of the casting.
- Enhanced Pressure Sealing: Components produced with this technique exhibit superior performance in applications requiring airtight or watertight seals.
- Improved Surface Quality: The technique reduces surface defects, resulting in smoother finishes and fewer post-processing requirements.

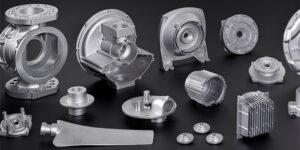

Applications of Aluminium Die Casting
Aluminium die casting is used across a wide range of industries due to its ability to produce lightweight, durable, and precise components. Below are some common applications, along with their specific requirements:
Automotive Industry
The automotive sector relies heavily on aluminium die casting for components that reduce vehicle weight and improve fuel efficiency. Common automotive applications include:
- Gearboxes: Require high dimensional accuracy (±0.05 mm) and tensile strength (250 MPa) to withstand mechanical stresses.
- Oil Sumps: Benefit from aluminium’s corrosion resistance and ability to form complex shapes with wall thicknesses of 2–4 mm.
- Suspension Components: Lightweight parts with densities around 2.7 g/cm³ contribute to improved vehicle handling and fuel economy.
Aerospace Industry
In aerospace, aluminium die castings are valued for their strength-to-weight ratio and ability to withstand extreme conditions. Applications include:
- Air Cylinders: Require tight tolerances (±0.03 mm) and high-pressure sealing for reliable performance.
- Heat Sinks: Utilize aluminium’s thermal conductivity (approximately 150 W/m·K) to dissipate heat in electronic systems.
- Structural Components: Benefit from aluminium’s low density and high fatigue resistance (up to 100 MPa).
Electronics and Electrical Industry
Aluminium die casting is widely used in electronics for components that require precision, thermal management, and durability. Examples include:
- Electrical Enclosures: Provide EMI shielding and corrosion resistance for sensitive electronics.
- Electrical Transmission Equipment: Require high dimensional stability and surface finishes with Ra values as low as 0.8 µm.
- Fan Blades and Hubs: Benefit from aluminium’s lightweight properties and ability to form aerodynamic shapes.
Marine and Industrial Applications
Aluminium’s corrosion resistance makes it ideal for marine and industrial environments. Common applications include:
- Marine Components: Withstand saltwater exposure due to aluminium’s natural oxide layer and corrosion resistance (pitting potential of -0.74 V).
- Hydraulic Cylinders: Utilize extrusion pin technology for leak-free performance under pressures up to 20 MPa.
- Pump Assemblies: Benefit from aluminium’s ability to form complex manifolds with integrated fluid passages.
Why Choose Aluminium Die Casting?
Aluminium die casting stands out as a versatile and sustainable manufacturing solution due to its unique combination of properties. Here’s why it’s the right choice for many applications:
- Sustainability: Aluminium’s recyclability and low energy requirements for recycling make it an eco-friendly option.
- Performance: The lightweight, durable, and corrosion-resistant nature of aluminium ensures long-lasting performance in demanding environments.
- Efficiency: High production rates and minimal post-processing requirements reduce manufacturing costs and lead times.
- Flexibility: The ability to produce complex shapes with tight tolerances supports innovative product designs.
By partnering with an experienced manufacturer, businesses can leverage aluminium die casting to achieve their production goals while meeting environmental and performance standards. KeSu is committed to meeting the needs of our customers. We ensure the smoothness of the resulting alloy. Whether you are looking for precision parts in high or low volume production, aluminium die-cast parts are the ideal choice. Our team of experts can help you choose the right method.
Frequently Asked Questions (FAQ)
What is aluminium die casting?
Aluminium die casting is a manufacturing process where molten aluminium is injected into a steel mould under high pressure to produce precise, complex parts with excellent surface finishes.
What are the benefits of aluminium die casting?
Aluminium die casting offers lightweight and strong parts, high dimensional accuracy, versatility in design, cost-effectiveness, durability, and 100% recyclability, making it ideal for various industries.
What industries use aluminium die casting?
Aluminium die casting is used in industries such as automotive, aerospace, electronics, marine, and industrial applications for components like gearboxes, heat sinks, and hydraulic cylinders.
How does extrusion pin technology improve die casting?
Extrusion pin technology reduces shrinkage porosity by applying high pressure to semi-solid aluminium during cooling, resulting in denser, leak-free castings with improved structural integrity.
Is aluminium die casting environmentally friendly?
Yes, aluminium is 100% recyclable, and recycling it requires only 5% of the energy needed for primary production, making it a sustainable choice for manufacturing.
