The engine components demand materials that can withstand the extreme conditions, such as high temperatures, pressures, and mechanical stresses, while ensuring safety, efficiency, and reliability. Selecting the right material for engine components is a critical process that requires a deep understanding of material properties, operational requirements, and practical constraints. Below, we detail the common materials used in engine components, with an in-depth focus on their properties, applications, and considerations, followed by the criteria and process for material selection.

Common Materials for Engine Components

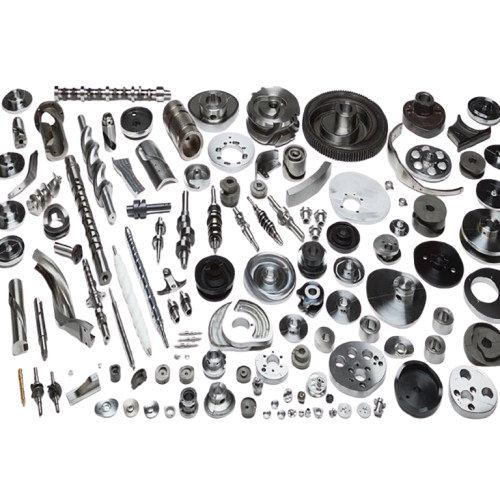

Common Materials and Selection Criteria for Engine Components 14:03 1

The selection of materials for engine components is driven by the need to balance performance under extreme conditions with weight, cost, and manufacturability. The following materials are widely used in engine manufacturing, each tailored to specific components and operating environments:

MaterialPropertiesApplications in EnginesSpecific ExamplesConsiderations
Titanium Alloys- High strength-to-weight ratio (900–1600 MPa)
- Excellent toughness (50–80 MPa·m^½)
- Corrosion resistance
- Low density (4.5 g/cm³)
- Moderate temperature tolerance (~600°C)
- Compressor blades, discs, casings, low-pressure turbine components- Ti-6Al-4V (common in compressor discs)
- Ti-6242 (higher temperature resistance)
- High cost
- Moderate machinability
- Limited high-temperature performance
Nickel-Based Alloys- High strength (1000–1400 MPa)
- Excellent creep resistance
- High-temperature stability (>1000°C)
- High density (8.2 g/cm³)
- Turbine blades, discs, combustor liners, hot-section components- Inconel 718 (turbine discs)
- René 80 (turbine blades)
- CMSX-4 (single-crystal)
- High cost
- Heavy density
- Complex manufacturing processes
Alloy Steels- High tensile strength (1000–2000 MPa)
- Toughness
- Good wear resistance
- Density ~7.8 g/cm³
- Limited high-temperature performance (~500–600°C)
- Shafts, gears, bearings, and other mechanically demanding components- AISI 4340 (shafts)
- M50 steel (bearings)
- Maraging steels (critical components)
- Higher density
- Limited temperature resistance
- Surface treatments needed
Aluminum Alloys- Low density (~2.7 g/cm³)
- Moderate strength (400–600 MPa)
- Excellent machinability
- Moderate corrosion resistance
- Fan casings, accessory housings, gearbox covers- 7075-T6 (fan casings)
- 6061 (non-structural components)
- Aluminum-lithium alloys (lighter and stiffer)
- Temperature limitations (<200°C)
- Lower strength than titanium or steel
- Limited use in hot sections
Carbon Fiber Composites- High strength-to-weight ratio (up to 2000 MPa)
- Low density (~1.6 g/cm³)
- High stiffness (~200 GPa)
- Fatigue resistance
- Temperature limit ~300°C
- Fan blades, outer casings, fan casings in turbofan engines- Epoxy resin-based carbon fiber (fan blades)
- Polyimide-based composites (higher-temperature applications)
- Expensive
- Temperature limitations
- Impact resistance concerns
- Labor-intensive manufacturing
Ceramics- Excellent high-temperature resistance (up to 1500°C)
- High hardness
- Low fracture toughness (4–6 MPa·m^½)
- Moderate density (3.2 g/cm³)
- Thermal barrier coatings (TBCs) on turbine blades
- Ceramic matrix composites (CMCs) in turbine shrouds
- Yttria-stabilized zirconia (TBCs)
- SiC/SiC CMCs (turbine shrouds)
- Silicon nitride (bearings)
- Brittle
- Complex and expensive manufacturing
- Careful design required to avoid fracture risks

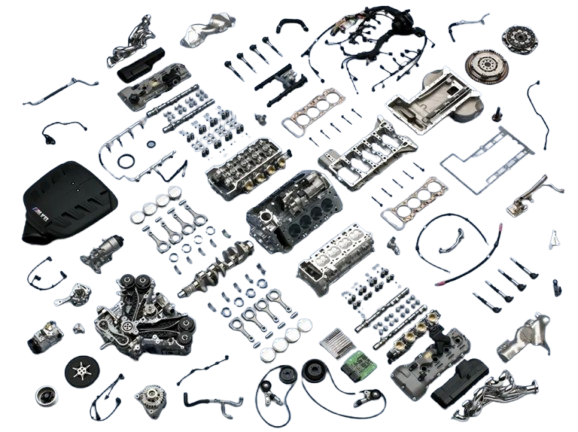

Common Materials and Selection Criteria for Engine Components 14:03 2

How to Choose Materials for Engine Components

Selecting materials for engine components is a complex process that balances performance, environmental demands, and practical considerations. The following factors are critical in guiding material selection:

  1. Mechanical Properties
    • Engine components experience diverse mechanical stresses, including tensile, compressive, and shear forces, as well as cyclic loading leading to fatigue. For instance, turbine blades require materials with high creep resistance to prevent deformation under prolonged high-temperature stress. Compressor discs need high tensile strength and toughness to withstand rotational forces. Engineers evaluate properties like yield strength, ultimate tensile strength, fracture toughness, and fatigue life using standardized tests (e.g., ASTM E8 for tensile testing).
  2. Environmental Conditions
    • Engine components operate in harsh environments, including exposure to corrosive gases, saltwater, and oxidative conditions at high temperatures. For example, combustor liners must resist oxidation in oxygen-rich environments at 1000–1500°C. Corrosion-resistant coatings or inherently resistant materials like nickel-based alloys are often selected. Environmental testing, such as salt spray tests (ASTM B117), ensures materials can endure these conditions.
  3. Temperature Requirements
    • Engine temperature profiles vary significantly across components. Fan blades operate at relatively low temperatures (<200°C), allowing the use of aluminum alloys or composites. Turbine blades and combustors face temperatures exceeding 1000°C, necessitating nickel-based alloys or ceramics with thermal barrier coatings (TBCs). Creep resistance and thermal fatigue performance are evaluated through tests like creep rupture testing (ASTM E139).
  4. Weight Constraints
    • Weight reduction is a priority to improve fuel efficiency. Materials like titanium alloys and carbon fiber composites are preferred over denser materials like steel. The strength-to-weight ratio (specific strength) is a key metric, calculated as strength divided by density.
  5. Manufacturing Feasibility
    • The ability to fabricate, machine, or assemble a material into complex engine geometries is critical. Aluminum alloys are favored for their excellent machinability, while ceramics require advanced techniques like hot isostatic pressing, increasing costs. Engineers assess formability, weldability, and compatibility with processes like forging or casting.
  6. Cost and Supply Chain Reliability
    • High-performance materials like nickel-based alloys are costly due to complex processing and raw material scarcity. Engineers balance performance with budget constraints. Supply chain reliability is critical, as disruptions can delay production. Life-cycle cost analysis, including maintenance and replacement costs, informs decisions.

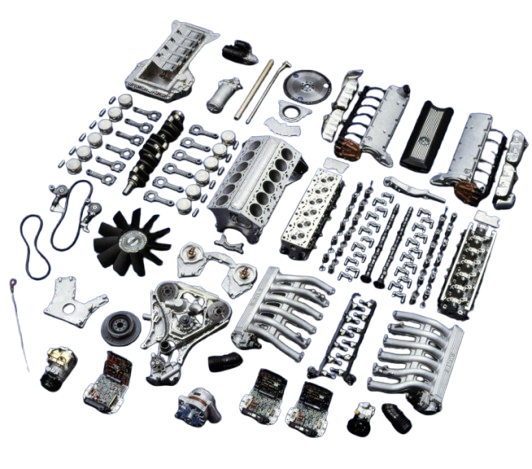

Common Materials and Selection Criteria for Engine Components 14:03 3

The Selection Process

The material selection process for engine components is a structured, iterative approach that integrates engineering analysis, testing, and optimization. The key steps include:

  1. Requirements Definition
    • Engineers define the component’s functional requirements, including load conditions, temperature ranges, and expected service life. For example, a turbine blade may need to withstand 1500°C and 10^7 fatigue cycles over 20,000 flight hours.
  2. Material Screening
    • Using material databases (e.g., MatWeb, ASM Handbooks), engineers shortlist candidate materials based on properties like strength, density, and thermal resistance. Ashby charts, plotting properties like strength vs. density, help visualize trade-offs.
  3. Simulation and Modeling
    • Finite element analysis (FEA) and computational fluid dynamics (CFD) simulate component performance under operational conditions. FEA predicts stress concentrations, while CFD evaluates thermal gradients, guiding material choice.
  4. Prototype Testing
    • Physical prototypes undergo mechanical (tensile, fatigue), thermal (creep, thermal shock), and environmental (corrosion, oxidation) tests. Test results validate simulation predictions and identify material limitations.
  5. Trade-Off Analysis
    • Engineers evaluate trade-offs using decision matrices or weighted scoring systems, ranking materials based on strength, cost, weight, manufacturability, and supply reliability.
  6. Final Selection and Validation
    • The chosen material undergoes certification testing to meet related standards. Non-destructive testing (e.g., ultrasonic inspection) ensures material integrity.
  7. Continuous Improvement
    • Post-selection, engineers monitor material performance in service, using maintenance and failure analysis data to refine future selections.

Importance of Testing and Certification

Materials undergo extensive testing to ensure compliance with related standards. Mechanical tests (e.g., ASTM E8, E647) verify strength and fatigue properties, while environmental tests (e.g., ASTM G85) assess corrosion resistance. Certification ensures materials withstand flight rigors, ensuring safety and reliability.
