TC4 Titanium Alloy Impeller: Characteristics, Production, and Applications

TC4 titanium alloy impeller's superior strength, lightweight nature, corrosion resistance, and suitability for high-speed operations make its indispensable in demanding applications.
TC4 Titanium Alloy Impeller 2031 0
Table of Contents

What Is TC4 Titanium Alloy Impellers?

TC4 titanium alloy, also known as GR5 or Ti-6Al-4V, is a high-performance material widely used in manufacturing impellers for small gas turbine engines and other high-demand mechanical components. Renowned for its exceptional strength-to-weight ratio, corrosion resistance, and durability under high-speed conditions, TC4 titanium alloy impellers are critical components in aerospace, marine, and industrial applications.

Key Characteristics of TC4 Titanium Alloy Impellers

TC4 titanium alloy impellers offer a unique combination of properties that make them ideal for high-performance applications:

  • High Strength: TC4 impellers exhibit excellent tensile strength (≥895 MPa) and yield strength (≥825 MPa), ensuring reliability under extreme mechanical stress.
  • Lightweight: The low density of titanium reduces the overall weight of the impeller, enhancing efficiency in high-speed rotating systems.
  • Corrosion Resistance: TC4 alloy resists corrosion in harsh environments, making it suitable for marine and chemical processing applications.
  • High Wear Resistance: The material's durability supports prolonged operation in abrasive conditions.
  • Suitability for High-Speed Operations: The alloy’s stability and fatigue resistance make it ideal for high-RPM environments, such as gas turbine engines.
TC4 Titanium Alloy Impeller: Characteristics, Production, and Applications 14:05 1

Chemical Composition of TC4 Titanium Alloy

The performance of TC4 titanium alloy impellers depends on precise control of their chemical composition. The alloy typically contains:

  • Aluminum (Al): 5.5–6.75%
  • Vanadium (V): 3.5–4.5%
  • Iron (Fe): <0.30%
  • Carbon (C): <0.08%
  • Nitrogen (N): <0.05%
  • Hydrogen (H): <0.015%
  • Oxygen (O): <0.20%

This composition ensures a balance of strength, ductility, and resistance to environmental degradation.

Mechanical Properties

TC4 titanium alloy impellers meet stringent mechanical requirements:

  • Tensile Strength: ≥895 MPa
  • Yield Strength: ≥825 MPa
  • Elongation: ≥10%
  • Reduction of Area: ≥25%

These properties enable the impeller to withstand high mechanical loads while maintaining structural integrity.

TC4 Titanium Alloy Impeller: Characteristics, Production, and Applications 14:05 2

Production Process of TC4 Titanium Alloy Impellers

The manufacturing of TC4 titanium alloy impellers involves a precise, multi-step process to ensure quality and performance:

  1. Melting: High-purity titanium is melted in a controlled environment to achieve the desired alloy composition.
  2. Non-Destructive Testing (NDT): Initial inspection to detect internal defects in the raw material.

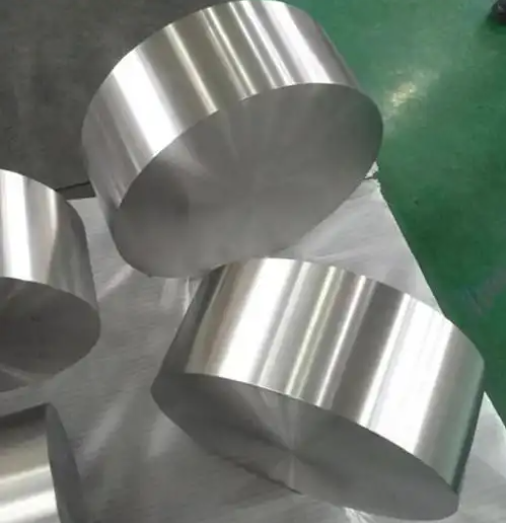

  3. Forging: The alloy is forged into a near-net-shape impeller blank, enhancing its mechanical properties.
  4. Annealing: Heat treatment to relieve internal stresses and improve ductility.
  5. Turning: Precision machining to achieve the desired dimensions and surface finish.
  6. Secondary NDT: Further inspection to ensure the absence of defects post-machining.

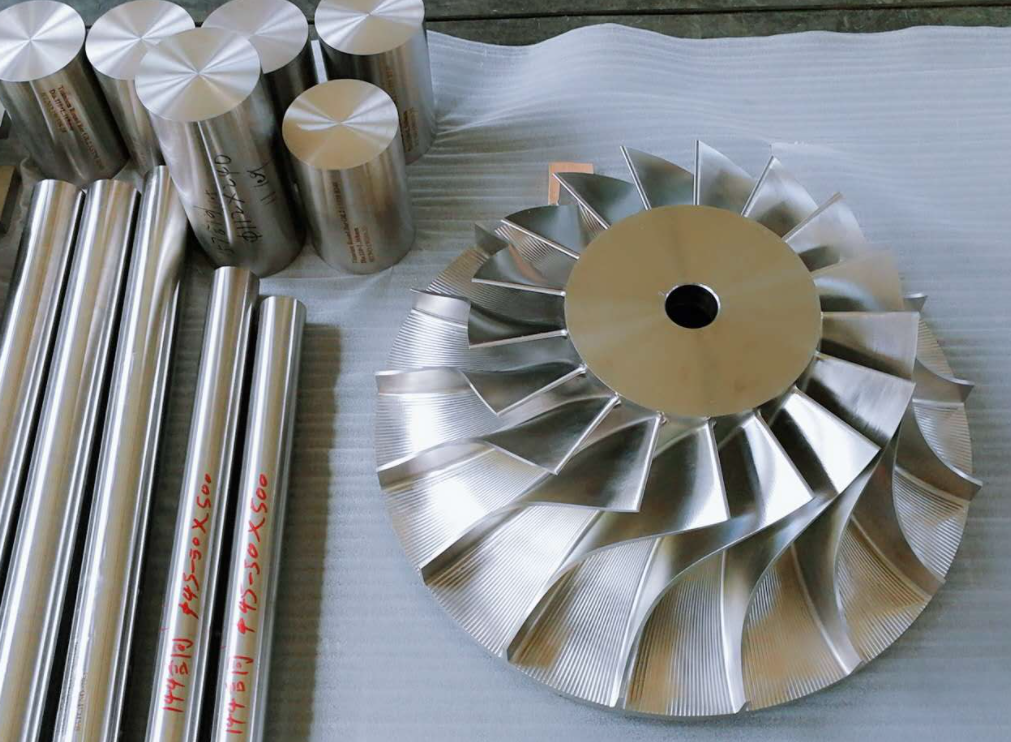

  7. Final Machining: Complex surfaces, such as impeller blades, are machined to exact specifications.

This rigorous process ensures that the impellers meet dimensional and performance standards.

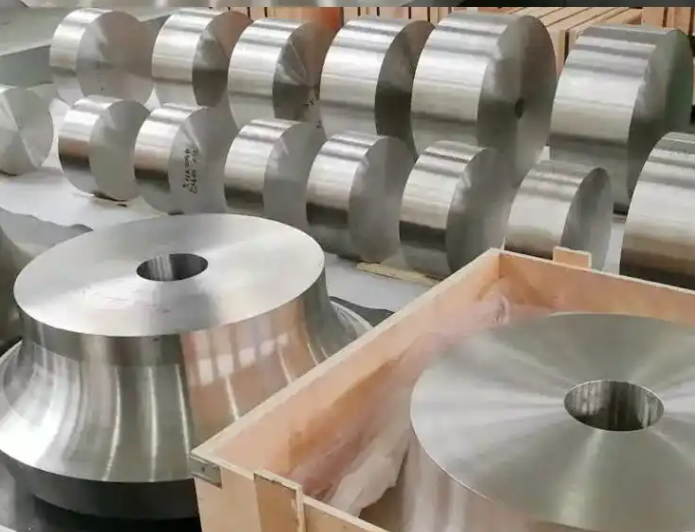

Delivery Conditions

TC4 titanium alloy impellers are supplied in one of three conditions, depending on application requirements:

  • Annealed (M): Stress-relieved for enhanced ductility and stability.
  • Hot-Worked (R): Processed at elevated temperatures for improved mechanical properties.
  • Cold-Worked (Y): Cold processing for higher strength and precision.

Specifications

TC4 titanium alloy impellers are available in a range of sizes to suit various applications:

  • Diameter: 150–900 mm
  • Length: 30–600 mm

These specifications allow for customization to meet specific design requirements in gas turbine engines and other machinery.

TC4 Titanium Alloy Impeller: Characteristics, Production, and Applications 14:05 3

How to solve the challenges of TC4 titanium alloy impellers

The manufacturing challenges of TC4 titanium alloy impellers, particularly in terms of their complex geometry and intricate curved surfaces, can be addressed through a combination of advanced techniques and specialized equipment:

  1. Precision Machining: Employing advanced CNC (Computer Numerical Control) machines that can handle the fine tolerances required for the impeller blades. High-precision multi-axis CNC machines can achieve the intricate geometries needed for small gas turbine impellers.
  2. Wire Electrical Discharge Machining (WEDM): This technique can be used to cut complex and fine details in the titanium alloy, offering high precision for intricate shapes.
  3. Additive Manufacturing (3D Printing): Additive techniques, such as selective laser melting (SLM), can be used to create the base geometry of the impeller. These methods are particularly effective for producing complex geometries that are difficult to machine with traditional methods.
  4. Investment Casting: For large or more geometrically complex impellers, investment casting can be used. This process can provide excellent surface finishes and intricate details while reducing the need for extensive machining.
  5. Advanced Coatings and Surface Treatment: The use of coatings like titanium nitride (TiN) or other wear-resistant coatings can help with the difficulty of machining titanium alloys, as these coatings reduce tool wear and increase tool life.
  6. Skilled Technicians and Design Optimization: The expertise of skilled technicians is crucial to maintaining high precision and efficiency. Additionally, advanced simulation tools can optimize the design of the impeller, ensuring it is manufacturable without compromising performance.
  7. Hybrid Manufacturing: Combining additive manufacturing and traditional machining methods can reduce production time and improve the complexity of the final product. This is particularly useful in producing the base structure through additive methods and finishing with precision machining for optimal surface quality.

These methods collectively help overcome the significant challenges in producing high-performance impellers for gas turbines, ensuring they meet strict design and material requirements.

TC4 Titanium Alloy Impeller: Characteristics, Production, and Applications 14:05 4

Applications of TC4 Titanium Alloy Impellers

TC4 titanium alloy impellers are integral to high-performance machinery, including:

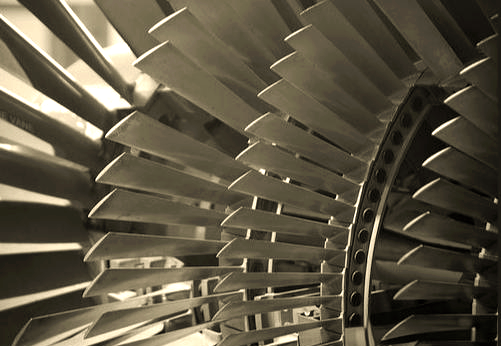

  • Aerospace: Used in small gas turbine engines for aircraft and drones, where lightweight and high-strength components are essential.
  • Marine: Employed in propulsion systems exposed to corrosive seawater environments.
  • Industrial: Utilized in compressors and turbines for power generation and chemical processing.

Their ability to operate reliably under high-speed, high-stress, and corrosive conditions makes them a preferred choice in these industries.

Conclusion

TC4 titanium alloy impellers, made from Ti-6Al-4V, are critical components in high-performance mechanical systems. Their superior strength, lightweight nature, corrosion resistance, and suitability for high-speed operations make them indispensable in demanding applications. The complex production process, combined with stringent quality control, ensures that these impellers meet the rigorous standards of industries such as aerospace and marine engineering. For engineers and manufacturers, mastering the challenges of producing these intricate components is key to advancing high-performance machinery.
