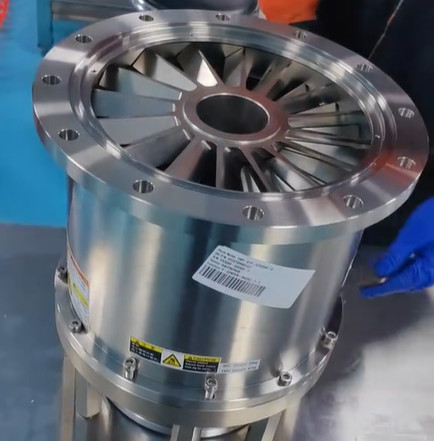

Molecular pumps operate in demanding environments where impellers are exposed to corrosive gases, high temperatures, and mechanical stresses. Ensuring the corrosion resistance of impellers is critical for maintaining pump performance, extending service life, and reducing maintenance costs. This article outlines three proven techniques for improving the corrosion resistance of molecular pump impellers: material selection, surface treatments, and protective coatings. Each method is explored in detail, supported by technical parameters and practical considerations to ensure durability and reliability.
1. Material Selection for Corrosion-Resistant Impellers
The choice of material is the foundation of an impeller’s corrosion resistance. Molecular pump impellers must withstand aggressive chemical environments, such as those involving chlorine, fluorine, or acidic vapors. Selecting materials with inherent corrosion-resistant properties is critical for ensuring long-term performance.
Commonly used materials include stainless steel alloys, nickel-based alloys, and titanium alloys. Each offers distinct advantages based on the operating environment. The following table summarizes key materials and their properties for molecular pump impellers:
| Material | Corrosion Resistance | Mechanical Properties | Typical Applications | Cost Consideration |
|---|---|---|---|---|
| 316L Stainless Steel | High resistance to pitting and crevice corrosion in chloride environments | Tensile strength: 485-620 MPa; Yield strength: 170-290 MPa | Chemical processing, semiconductor manufacturing | Moderate |
| Inconel 625 (Nickel Alloy) | Excellent resistance to acids, alkalis, and high-temperature oxidation | Tensile strength: 830-1100 MPa; Yield strength: 415-550 MPa | High-corrosion vacuum systems, aerospace | High |
| Titanium Grade 5 | Superior resistance to oxidizing and mildly reducing environments | Tensile strength: 895-1000 MPa; Yield strength: 828-910 MPa | Marine environments, aggressive chemical exposure | Very high |
316L Stainless Steel: This low-carbon stainless steel contains 16-18% chromium and 2-3% molybdenum, forming a protective oxide layer that resists pitting and crevice corrosion. It is suitable for applications involving chlorinated gases or mildly acidic vapors, with a maximum operating temperature of around 870°C. However, it may not perform well in highly reducing environments.
Inconel 625: A nickel-chromium-molybdenum alloy, Inconel 625 excels in extreme conditions, resisting corrosion from acids, alkalis, and high-temperature oxidation. Its high strength (up to 1100 MPa tensile) and resistance to stress-corrosion cracking make it ideal for molecular pumps in semiconductor or chemical processing industries. The trade-off is its higher cost, which may limit its use in budget-constrained applications.
Titanium Grade 5: Known for its exceptional corrosion resistance in oxidizing environments, titanium alloys are lightweight (density: 4.43 g/cm³) and durable. They are particularly effective in marine or high-salinity environments but are costly and complex to machine, requiring specialized manufacturing processes.
Selection Criteria: When choosing a material, consider the following parameters:
- Chemical Compatibility: Match the material to the specific corrosive agents (e.g., pH range, gas composition).
- Operating Conditions: Evaluate temperature (e.g., 20°C to 870°C for stainless steel) and pressure requirements.
- Mechanical Strength: Ensure the material can withstand rotational stresses (e.g., 10,000-100,000 RPM in molecular pumps).
- Cost-Effectiveness: Balance performance with budget constraints, as high-performance alloys like titanium increase costs.
Proper material selection enhances impeller durability and reduces the risk of corrosion-related failures, ensuring consistent pump performance.
2. Surface Treatments for Enhanced Corrosion Protection
Surface treatments modify the impeller’s surface to improve its resistance to corrosion and wear. These treatments enhance the natural oxide layer or alter surface properties to create a barrier against corrosive agents. Common techniques include electropolishing, passivation, and plasma nitriding, each offering specific benefits for molecular pump impellers.
Electropolishing: This electrochemical process removes a thin layer of material (typically 10-40 µm) from the impeller surface, creating a smooth, mirror-like finish. By reducing surface roughness (Ra < 0.8 µm), electropolishing minimizes sites for corrosion initiation, such as pits or crevices. For stainless steel impellers, electropolishing enhances the chromium oxide layer, improving resistance to chloride-induced pitting. The process is performed in an electrolyte bath (e.g., sulfuric acid-phosphoric acid mixture) at 50-70°C, with a current density of 0.2-0.5 A/cm².
Passivation: Passivation involves treating the impeller with a chemical solution (e.g., nitric acid, 20-30% concentration) to remove free iron and enhance the formation of a uniform oxide layer. For 316L stainless steel, passivation increases the chromium-to-iron ratio on the surface, improving corrosion resistance in acidic environments (pH 2-6). The process is typically conducted at 25-50°C for 20-30 minutes, ensuring compatibility with high-vacuum systems.
Plasma Nitriding: This thermochemical treatment introduces nitrogen into the impeller surface at 400-600°C in a low-pressure plasma environment. It forms a hard, corrosion-resistant nitride layer (10-20 µm thick) with a hardness of 800-1200 HV. For stainless steel impellers, plasma nitriding enhances resistance to wear and corrosion in abrasive or chemically aggressive conditions, such as those involving fluorine-based gases.
Implementation Considerations: Surface treatments require precise control to avoid compromising the impeller’s dimensional accuracy. For example:
- Surface Uniformity: Uneven treatment can lead to localized corrosion vulnerabilities.
- Material Compatibility: Plasma nitriding is less effective on titanium alloys due to their inherent oxide stability.
- Cost and Scalability: Electropolishing is cost-effective for large-scale production, while plasma nitriding requires specialized equipment, increasing costs.
Surface treatments are critical for enhancing the impeller’s resistance to corrosion while maintaining mechanical integrity, making them a practical solution for extending service life.
3. Protective Coatings for Long-Term Durability
Applying protective coatings to impellers provides an additional layer of defense against corrosion. Coatings act as a physical barrier, isolating the impeller surface from corrosive gases or liquids. Common coatings for molecular pump impellers include ceramic coatings, polymer-based coatings, and metallic coatings, each tailored to specific operating conditions.
Ceramic Coatings: Silicon-nitride or silicon-carbide composite coatings offer exceptional hardness (2000-3000 HV) and resistance to acids, alkalis, and high temperatures (up to 1200°C). These coatings are applied via chemical vapor deposition (CVD) or plasma spraying, achieving thicknesses of 5-50 µm. For example, silicon-carbide coatings are ideal for impellers exposed to hydrofluoric acid, as they resist etching and maintain structural integrity.
Polymer-Based Coatings: Epoxy or polytetrafluoroethylene (PTFE) coatings provide chemical inertness and low friction (coefficient of friction: 0.05-0.1). PTFE coatings, applied at 50-100 µm thickness, are effective in environments with pH 2-12, resisting corrosion from acidic or alkaline vapors. These coatings are applied via spray or dip-coating methods at temperatures below 250°C to avoid thermal degradation.
Metallic Coatings: Nickel or chromium-based coatings, applied through thermal spraying or electroplating, enhance corrosion resistance in chloride-rich environments. For instance, a nickel coating (20-30 µm thick) applied via high-velocity oxy-fuel (HVOF) spraying achieves a bond strength of 60-80 MPa, ensuring durability under high-speed rotation (up to 100,000 RPM).
Coating Application Parameters: The following table outlines key parameters for coating application:
| Coating Type | Application Method | Thickness (µm) | Hardness (HV) | Operating Temperature (°C) | Corrosion Resistance |
|---|---|---|---|---|---|
| Silicon-Carbide Ceramic | CVD or Plasma Spraying | 5-50 | 2000-3000 | Up to 1200 | Acids, alkalis, hydrofluoric acid |
| PTFE (Polymer) | Spray or Dip-Coating | 50-100 | 50-100 | Up to 250 | pH 2-12 environments |
| Nickel (Metallic) | HVOF or Electroplating | 20-30 | 600-800 | Up to 600 | Chloride-rich environments |
Implementation Considerations: Applying coatings requires careful consideration of the following:
- Adhesion Strength: Ensure strong bonding (e.g., 60-80 MPa for HVOF coatings) to prevent delamination under high rotational speeds.
- Thermal Compatibility: Coatings must withstand operating temperatures without cracking or degrading (e.g., PTFE limited to 250°C).
- Cost vs. Performance: Ceramic coatings offer superior durability but are more expensive than polymer coatings.
Protective coatings significantly extend impeller life by providing a robust barrier against corrosive agents, ensuring reliable performance in harsh vacuum environments.
Practical Application and Integration
Implementing these techniques requires a systematic approach to ensure compatibility with the molecular pump’s design and operating conditions. The process begins with a thorough analysis of the pump’s environment, including gas composition, temperature, and rotational speed. For example, a pump operating at 50,000 RPM in a semiconductor manufacturing system exposed to chlorine gas may require a combination of Inconel 625 material, electropolishing, and a silicon-carbide coating to achieve optimal corrosion resistance.
Step-by-Step Integration:
- Environmental Analysis: Identify corrosive agents (e.g., pH, gas type) and operating conditions (e.g., 20-1200°C, 10,000-100,000 RPM).
- Material Selection: Choose a base material (e.g., 316L stainless steel for cost-effectiveness or Inconel 625 for extreme conditions).
- Surface Treatment: Apply electropolishing or passivation to enhance the surface oxide layer, ensuring uniformity (Ra < 0.8 µm).
- Coating Application: Select and apply a coating (e.g., PTFE for low-friction needs or ceramic for high-temperature resistance) using appropriate methods (e.g., CVD, HVOF).
- Quality Control: Verify coating adhesion (e.g., 60-80 MPa for metallic coatings) and dimensional accuracy to ensure performance.
By combining these techniques, manufacturers can produce impellers that resist corrosion, reduce maintenance frequency, and maintain efficiency in demanding vacuum systems.
Conclusion
Enhancing the corrosion resistance of molecular pump impellers is essential for ensuring long-term performance and reliability in harsh environments. By carefully selecting corrosion-resistant materials like 316L stainless steel, Inconel 625, or titanium alloys, applying surface treatments such as electropolishing or plasma nitriding, and using protective coatings like ceramic or PTFE, manufacturers can significantly extend impeller service life. Each technique is supported by specific parameters, such as material tensile strengths (485-1100 MPa), coating thicknesses (5-100 µm), and operating temperatures (up to 1200°C), ensuring technical precision. A systematic approach to integrating these methods, tailored to the pump’s operating conditions, ensures optimal durability and performance, reducing downtime and maintenance costs in critical applications like semiconductor manufacturing and chemical processing.
