Troubleshooting CNC Machines: Common Problems and Solutions

Troubleshooting CNC machines is essential for maintaining optimal performance and minimizing downtime in precision manufacturing. At Kesu Group, we understand the complexities of CNC machining, from milling and turning to Swiss machining, and offer expert insights into diagnosing and resolving common issues. This comprehensive guide explores frequent CNC machine problems, their causes, and practical solutions, ensuring your operations run smoothly.

Whether you're dealing with tool wear, dimensional inaccuracies, or machine vibrations, our guide provides actionable advice backed by Kesu Group’s ISO 9001:2015 certified expertise. With over 200 CNC machines and a team of 30+ engineers, we support industries like aerospace, medical, and electronics. Contact us for tailored solutions or upload your drawings for an instant quote.

Understanding CNC Machine Troubleshooting

Troubleshooting CNC machines involves identifying, diagnosing, and resolving issues that affect performance, accuracy, or productivity. CNC machines, including 3-axis, 5-axis, and Swiss lathes, are complex systems that integrate mechanical, electrical, and software components. Problems can arise from improper setup, worn tools, software glitches, or environmental factors. Kesu Group’s troubleshooting approach ensures minimal downtime and consistent production quality.

Why Troubleshooting is Critical

Effective troubleshooting prevents costly production delays and ensures parts meet tight tolerances, such as ±0.001 mm for metal components. By addressing issues promptly, manufacturers can maintain efficiency, reduce scrap rates, and extend machine lifespan. Kesu Group’s proactive maintenance strategies help clients achieve these goals.

Common CNC Machine Types

Understanding the machine type is key to troubleshooting. Kesu Group operates a variety of CNC machines, each with unique characteristics:

• CNC Milling Machines: Use rotating tools for complex geometries.
• CNC Turning Machines: Rotate workpieces for cylindrical parts.
• Swiss Lathes: Support slender, high-precision components with guide bushings.

Troubleshooting Process Overview

A systematic troubleshooting process includes:

• Identifying symptoms (e.g., poor surface finish, machine alarms).
• Analyzing potential causes (e.g., tool wear, incorrect parameters).
• Implementing solutions (e.g., tool replacement, recalibration).
• Testing and verifying results.

Common CNC Machine Problems and Solutions

Below, we outline the most frequent CNC machine issues, their causes, and solutions, based on Kesu Group’s extensive experience.

1. Dimensional Inaccuracies

Problem: Parts do not meet specified dimensions, exceeding tolerances like ±0.01 mm for metals.

Causes:

• Tool wear or deflection.
• Incorrect tool offset settings.
• Thermal expansion due to improper cooling.
• Machine misalignment.

Solutions:

• Inspect and replace worn tools. Kesu uses tools with a maximum wear limit of 0.05 mm.
• Verify tool offsets using a CMM (Coordinate Measuring Machine) with accuracy of ±0.002 mm.
• Ensure coolant flow rate (e.g., 5-10 L/min) to control thermal expansion.
• Recalibrate machine axes using laser alignment systems.

2. Poor Surface Finish

Problem: Parts exhibit rough surfaces, scratches, or chatter marks, failing surface roughness standards (e.g., Ra 0.8 µm).

Causes:

• Excessive cutting speed or feed rate.
• Vibration due to loose components.
• Dull or damaged tools.
• Inadequate lubrication.

Solutions:

• Adjust cutting parameters (e.g., spindle speed: 5,000-10,000 RPM; feed rate: 0.1-0.5 mm/rev).
• Tighten fixtures and check spindle runout (max 0.005 mm).
• Replace tools with sharpness below 0.02 mm edge radius.
• Use high-performance lubricants with viscosity of 10-20 cSt.

3. Machine Vibrations

Problem: Excessive vibrations cause noise, poor accuracy, or tool damage.

Causes:

• Unbalanced tools or spindles.
• Loose machine components.
• Incorrect cutting parameters.
• Foundation instability.

Solutions:

• Balance tools to ISO 1940 G2.5 standards.
• Inspect and tighten bolts to torque specifications (e.g., 50-100 Nm).
• Optimize cutting parameters (e.g., depth of cut: 0.5-2 mm).
• Ensure foundation stability with vibration dampening pads (max 0.1 mm deflection).

4. Tool Breakage

Problem: Tools break prematurely, disrupting production.

Causes:

• Excessive cutting forces.
• Improper tool material or coating.
• Incorrect tool path programming.
• Material defects in workpiece.

Solutions:

• Reduce cutting forces by lowering feed rate (e.g., 0.05-0.2 mm/rev).
• Use tools with appropriate coatings (e.g., TiAlN for stainless steel).
• Review CAM programming for optimized tool paths.
• Inspect raw material using XRF spectrometry for consistency.

5. Machine Alarms or Software Errors

Problem: Machine stops with error codes or alarms, halting production.

Causes:

• Software glitches or corrupted G-code.
• Sensor malfunctions.
• Electrical issues (e.g., power surges).
• Overloaded servo motors.

Solutions:

• Verify G-code syntax and simulate tool paths in software like Mastercam.
• Calibrate sensors with accuracy of ±0.01 mm.
• Install surge protectors with 1,000 J capacity.
• Reduce motor load by adjusting acceleration rates (e.g., 0.5-1 m/s²).

CNC Machine Maintenance to Prevent Issues

Preventive maintenance is key to minimizing CNC machine problems. Kesu Group recommends a structured maintenance schedule to ensure long-term reliability.

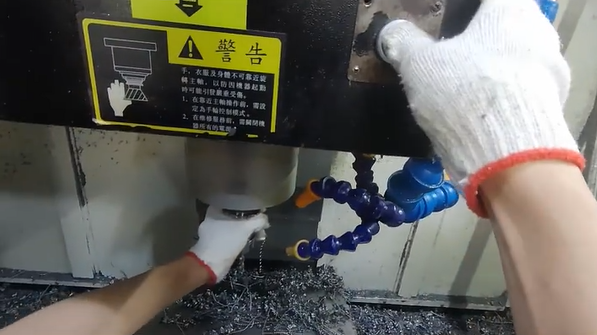

Daily Maintenance

Daily checks prevent minor issues from escalating:

• Inspect coolant levels (maintain 80-100% of tank capacity).
• Check for loose bolts or fixtures (torque: 20-50 Nm).
• Clean chips from machine bed to prevent buildup.
• Verify spindle temperature (max 40°C).

Weekly Maintenance

Weekly tasks focus on deeper inspections:

• Lubricate linear guides with grease (NLGI Grade 2).
• Check tool holder runout (max 0.005 mm).
• Inspect air filters and replace if clogged.
• Calibrate axes using a dial indicator (accuracy: ±0.002 mm).

Monthly Maintenance

Monthly maintenance ensures long-term performance:

• Inspect spindle bearings for wear (max play: 0.01 mm).
• Check electrical connections for corrosion.
• Update CNC software to the latest version.
• Perform backlash compensation (max 0.005 mm).

Kesu Group’s CNC Machining Capabilities

Kesu Group’s expertise in CNC machining underpins our troubleshooting capabilities. Our facilities support a wide range of machines and applications.

CNC Machine Inventory

Our 8,000+ square meter facility houses over 200 CNC machines, including:

Inspection Equipment

Our quality control ensures parts meet specifications:

Tolerance Standards

Kesu Group achieves tight tolerances to ensure part accuracy:

Materials and Finishes for CNC Machining

Material selection and surface finishes can impact CNC machine performance and part quality. Kesu Group supports a wide range of options.

Common Materials

Materials must be compatible with CNC machining processes:

• Aluminum: Lightweight, alloys like AL6061-T651.
• Stainless Steel: Corrosion-resistant, alloys like 304, 316.
• Titanium: High strength, Grade 5 for aerospace.
• PEEK: High-performance plastic for medical parts.

Surface Finishes

Finishes enhance part performance and durability:

• Anodizing: Corrosion resistance for aluminum.
• Nickel Plating: Conductivity for electronic components.
• Polishing: Smooth finish (Ra 0.4 µm).
• Passivation: Corrosion resistance for stainless steel.

Applications of CNC Machining

Troubleshooting is critical for maintaining CNC machines in various industries:

• Aerospace: Precision components like turbine blades.
• Medical: Implants and surgical tools.
• Electronics: Connectors and heat sinks.
• Automotive: Engine and transmission parts.
