In the world of CNC machining, 5-axis milling and 5-axis turning represent the pinnacle of precision manufacturing. These advanced techniques allow manufacturers to create complex parts with unparalleled accuracy, catering to industries like aerospace, automotive, medical, and more. But how do these two processes differ, and when should you choose one over the other? This in-depth guide explores the technical details, parameters, applications, advantages, and limitations of 5-axis milling and 5-axis turning, helping you make informed decisions for your machining projects.
With over 4,500 words of detailed analysis, this article is your go-to resource for understanding these cutting-edge CNC technologies. Let’s dive into the specifics, starting with an overview of each process.
Understanding 5-Axis Milling
5-axis milling is a CNC machining process that uses a cutting tool moving along five different axes simultaneously to shape a workpiece. Unlike traditional 3-axis milling, which operates along the X, Y, and Z axes, 5-axis milling adds two rotational axes (typically A and B or C), allowing the tool to approach the workpiece from virtually any angle. This capability is ideal for creating complex geometries, such as turbine blades, impellers, and intricate molds.
How 5-Axis Milling Works
In 5-axis milling, the workpiece is typically held stationary or rotated, while the cutting tool moves along linear axes (X, Y, Z) and rotates around two additional axes (A, B, or C). The machine’s configuration can vary, including:
- Trunnion-style machines: The workpiece rotates on a trunnion table, while the tool moves linearly.
- Swivel-head machines: The spindle rotates, allowing the tool to tilt and approach the workpiece.
- Gantry-style machines: Large-scale setups for oversized parts, with the tool moving in all five axes.
The simultaneous movement of all five axes enables continuous machining, reducing the need for multiple setups and improving precision.
Key Parameters of 5-Axis Milling
Understanding the technical parameters of 5-axis milling is crucial for optimizing performance. Below is a detailed table summarizing key specifications:
| Parameter | Description | Typical Values |
|---|---|---|
| Spindle Speed | RPM of the cutting tool | 8,000–30,000 RPM |
| Tool Diameter | Size of the milling tool | 0.5 mm–50 mm |
| Feed Rate | Speed of tool movement | 50–10,000 mm/min |
| Tolerance | Precision level | ±0.005 mm to ±0.01 mm |
| Workpiece Size | Maximum dimensions | Up to 2,000 mm x 1,500 mm x 1,000 mm |
| Axis Travel | Range of motion | X: 500–2,000 mm, Y: 400–1,500 mm, Z: 300–1,000 mm |
These parameters vary based on the machine’s make, model, and intended application, but they provide a baseline for understanding 5-axis milling capabilities.
Applications of 5-Axis Milling
5-axis milling excels in industries requiring high precision and complex shapes. Common applications include:
- Aerospace: Turbine blades, structural components, and engine parts.
- Medical: Implants, prosthetics, and surgical tools.
- Automotive: Engine blocks, transmission components, and custom parts.
- Mold Making: Injection molds and die-casting tools with intricate contours.
The versatility of 5-axis milling makes it a preferred choice for parts that demand tight tolerances and smooth surface finishes.
Understanding 5-Axis Turning
5-axis turning, also known as mill-turn or multi-tasking machining, combines the rotational motion of traditional turning with the multi-axis capabilities of milling. In this process, the workpiece rotates (typically around the C-axis), while the cutting tool moves along the X, Y, Z, and additional rotational axes (A or B). This hybrid approach enables the production of complex cylindrical or asymmetrical parts in a single setup.
How 5-Axis Turning Works
5-axis turning machines, often called mill-turn centers, integrate a lathe’s rotational capabilities with a milling spindle. The workpiece is clamped in a chuck or collet and rotates at high speeds, while the tool performs both turning (for cylindrical features) and milling (for slots, holes, or contours). Key configurations include:
- Single-spindle machines: One spindle for both turning and milling.
- Dual-spindle machines: Two spindles for simultaneous machining or part transfer.
- Live tooling: Rotating tools for milling operations during turning.
The ability to perform both turning and milling in one setup reduces cycle times and enhances accuracy.
Key Parameters of 5-Axis Turning
5-axis turning machines have distinct parameters tailored to their hybrid nature. Below is a table of typical specifications:
| Parameter | Description | Typical Values |
|---|---|---|
| Spindle Speed | RPM of the workpiece | 1,000–6,000 RPM |
| Tool Diameter | Size of turning/milling tools | 1 mm–25 mm |
| Feed Rate | Speed of tool movement | 100–5,000 mm/min |
| Tolerance | Precision level | ±0.002 mm to ±0.008 mm |
| Workpiece Diameter | Maximum diameter | Up to 500 mm |
| Axis Travel | Range of motion | X: 200–600 mm, Z: 300–1,200 mm, Y: ±50–100 mm |
These parameters highlight the focus on cylindrical parts and the integration of milling capabilities in 5-axis turning.
Applications of 5-Axis Turning
5-axis turning is ideal for parts requiring both rotational and non-rotational features. Common applications include:
- Aerospace: Shafts, connectors, and landing gear components.
- Oil and Gas: Valves, fittings, and pump components.
- Automotive: Crankshafts, camshafts, and gear blanks.
- Medical: Bone screws, dental implants, and surgical instruments.
The ability to machine complex parts in one setup makes 5-axis turning a favorite for high-volume production.

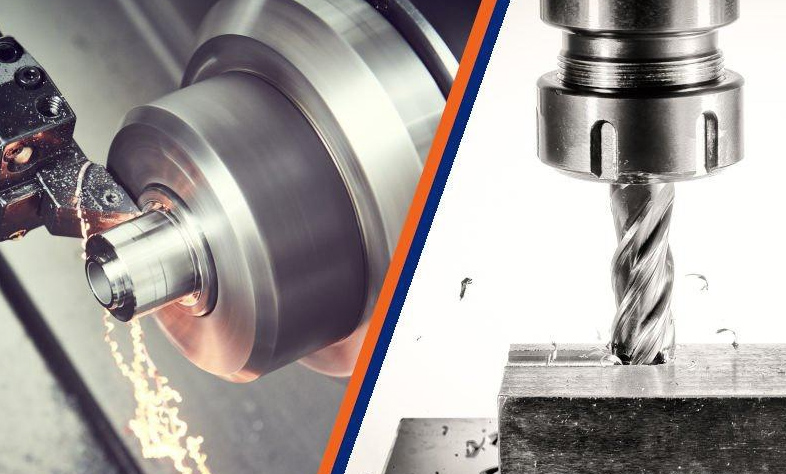

Comparing 5-Axis Milling and 5-Axis Turning
While both 5-axis milling and 5-axis turning leverage multi-axis CNC technology, they differ significantly in their approach, capabilities, and applications. Below, we compare them across several key factors to help you decide which process suits your needs.
Process Mechanics
5-axis milling involves a stationary or minimally rotating workpiece with a moving cutting tool. The tool’s ability to tilt and rotate allows it to access hard-to-reach areas, making it ideal for sculpting complex surfaces. In contrast, 5-axis turning relies on a rotating workpiece, with the tool performing both turning and milling operations. This rotational motion is better suited for cylindrical or symmetrical parts.
Part Geometry
5-axis milling excels at producing parts with intricate, non-cylindrical geometries, such as contoured surfaces, undercuts, and freeform shapes. It’s the go-to choice for molds, impellers, and aerospace components. Conversely, 5-axis turning is optimized for cylindrical or axisymmetric parts, like shafts, bolts, and connectors, but its milling capabilities allow it to add features like slots or off-center holes.
Setup and Cycle Time
5-axis milling often requires fewer setups than 3-axis milling due to its multi-angle access, but complex parts may still need repositioning. 5-axis turning, with its mill-turn capabilities, typically completes parts in a single setup, reducing cycle times and improving efficiency. This makes turning preferable for high-volume production of rotationally symmetric parts.
Precision and Tolerances
Both processes offer exceptional precision, but 5-axis turning often achieves tighter tolerances (down to ±0.002 mm) due to the continuous rotation of the workpiece, which minimizes vibration and tool deflection. 5-axis milling, while highly accurate (±0.005 mm), may face challenges with deep cavities or thin-walled parts, where tool deflection can affect precision.
Material Compatibility
Both processes handle a wide range of materials, including metals (aluminum, steel, titanium), plastics, and composites. However, 5-axis milling is better suited for softer materials or those requiring intricate surface finishes, while 5-axis turning is preferred for harder materials like stainless steel or Inconel, where continuous cutting is advantageous.
Cost and Machine Investment
5-axis milling machines are generally more expensive due to their complex kinematics and larger work envelopes. Setup and programming for milling can also be time-intensive, increasing costs. 5-axis turning machines, while still costly, are often more cost-effective for high-volume production due to their faster cycle times and integrated mill-turn capabilities.
Advantages and Limitations
Each process has unique strengths and weaknesses, which we outline below to provide a balanced perspective.
Advantages of 5-Axis Milling
- Complex geometries: Capable of machining intricate shapes and freeform surfaces.
- Versatility: Suitable for a wide range of parts, from small components to large molds.
- Surface finish: Achieves smooth finishes with minimal post-processing.
- Flexibility: Ideal for prototyping and low-volume production.
Limitations of 5-Axis Milling
- Cost: High machine and programming costs.
- Setup time: Complex parts may require multiple setups or fixtures.
- Tool deflection: Can affect precision in deep or thin-walled features.
Advantages of 5-Axis Turning
- Single setup: Combines turning and milling for faster production.
- High precision: Tighter tolerances for cylindrical parts.
- Efficiency: Ideal for high-volume production of rotationally symmetric parts.
- Material versatility: Excels with hard metals and alloys.
Limitations of 5-Axis Turning
- Geometry constraints: Best suited for cylindrical or axisymmetric parts.
- Machine complexity: Requires skilled operators and advanced programming.
- Workpiece size: Limited by chuck or collet capacity.
Choosing Between 5-Axis Milling and 5-Axis Turning
Deciding between 5-axis milling and 5-axis turning depends on several factors, including part geometry, production volume, material, and budget. Here’s a quick guide to help you choose:
- Choose 5-axis milling if: You need complex, non-cylindrical parts with intricate surfaces, such as aerospace components or molds. It’s also ideal for prototyping or low-volume runs where flexibility is key.
- Choose 5-axis turning if: You’re producing cylindrical or axisymmetric parts, like shafts or connectors, especially in high volumes. It’s perfect for applications requiring tight tolerances and fast cycle times.
For hybrid parts requiring both cylindrical and complex features, 5-axis turning with live tooling may offer the best of both worlds, provided the workpiece size fits the machine’s capacity.
Conclusion
Both 5-axis milling and 5-axis turning are powerful CNC machining processes that cater to different manufacturing needs. 5-axis milling shines in creating complex, non-cylindrical parts with intricate surfaces, making it indispensable in aerospace, medical, and mold-making industries. 5-axis turning, with its mill-turn capabilities, excels in producing cylindrical parts with high precision and efficiency, ideal for automotive, oil and gas, and high-volume production.
By understanding their technical parameters, applications, and limitations, you can select the right process for your project, balancing cost, precision, and production goals. Whether you’re machining a turbine blade or a crankshaft, these advanced technologies ensure top-tier results in modern manufacturing.
Frequently Asked Questions (FAQ)
What is the main difference between 5-axis milling and 5-axis turning?
The primary difference lies in the workpiece motion. In 5-axis milling, the cutting tool moves and rotates around a stationary or minimally rotating workpiece to create complex shapes. In 5-axis turning, the workpiece rotates rapidly, while the tool performs both turning and milling, making it ideal for cylindrical parts.
Which process is more precise?
5-axis turning generally achieves tighter tolerances (±0.002 mm) due to the continuous rotation of the workpiece, which reduces vibration. 5-axis milling offers high precision (±0.005 mm) but may face challenges with deep or thin-walled features.
Can 5-axis turning replace 5-axis milling?
Not entirely. While 5-axis turning with live tooling can perform some milling tasks, it’s optimized for cylindrical parts. 5-axis milling is better suited for complex, non-cylindrical geometries like molds or turbine blades.
What materials are compatible with these processes?
Both processes work with metals (aluminum, steel, titanium), plastics, and composites. 5-axis turning is preferred for harder materials like stainless steel, while 5-axis milling is ideal for softer materials or intricate surface finishes.
How do I choose the right process for my project?
Consider your part’s geometry, production volume, and budget. Choose 5-axis milling for complex, non-cylindrical parts or prototyping. Opt for 5-axis turning for cylindrical parts, high-volume production, or when single-setup efficiency is critical.
