Micro machining is a critical process in the aerospace industry, enabling the production of small, intricate components with tolerances often measured in microns. This article examines the technical demands, material challenges, and advanced techniques involved in micro machining aerospace parts, emphasizing the precision required for reliability and safety in high-performance applications.
Understanding Micro Machining in Aerospace
Micro machining refers to manufacturing processes that produce components with dimensions ranging from a few micrometers to a few millimeters. In aerospace, these parts include sensors, actuators, fuel injection nozzles, and miniature gears, often requiring tolerances as tight as ±1 micron. The process involves specialized equipment such as micro mills, micro lathes, and laser machining systems, which must operate with extreme precision to meet the stringent standards of aerospace applications.
The aerospace industry demands components that perform reliably under extreme conditions, such as high temperatures, pressures, and vibrations. Micro machining addresses these requirements by enabling the creation of parts with complex geometries and superior surface finishes. Techniques like CNC micro milling, Swiss turning, and micro-electrical discharge machining (EDM) are commonly used to achieve the necessary accuracy and repeatability.
Material Properties and Their Impact
Aerospace components are often made from advanced materials such as titanium alloys, Inconel, carbon-fiber composites, and high-performance engineering plastics like PEEK and Ultem. These materials are selected for their strength-to-weight ratio, corrosion resistance, and thermal stability, but they present significant machining challenges due to their hardness, density, and abrasiveness.
| Material | Properties | Machining Considerations |
|---|---|---|
| Titanium Alloys | High strength-to-weight ratio, corrosion resistance, heat resistance | Requires specialized tooling, low cutting speeds to prevent work hardening, high tool wear |
| Inconel | High temperature resistance, excellent mechanical strength | Difficult to machine due to hardness, requires robust cooling systems, prone to surface cracking |
| PEEK | High tensile strength, chemical resistance | Machines like a metal, sensitive to heat, requires precise control to avoid distortion |
| Carbon-Fiber Composites | Lightweight, high strength | Abrasive, requires diamond-coated tools, prone to delamination if not machined properly |
Each material requires specific machining parameters, such as cutting speeds, feed rates, and tool materials, to maintain dimensional accuracy and surface quality. For example, titanium alloys demand low cutting speeds to prevent work hardening, while PEEK requires careful thermal management to avoid melting or distortion. The choice of tooling, such as diamond-coated or carbide tools, is critical to achieving the desired precision while minimizing tool wear.
Precision Requirements and Tolerances
Aerospace components often require tolerances in the range of ±1 to ±5 microns, particularly for parts like fuel injectors, turbine blades, and avionics housings. Achieving such precision involves advanced CNC machines capable of multi-axis operations, real-time monitoring systems, and precise fixturing to minimize vibration and thermal expansion. For instance, Swiss turning machines with 7 to 9 axes can hold tolerances as low as ±0.00015 inches (±3.81 microns) for small cylindrical components.
Maintaining these tolerances requires meticulous process control. Factors such as tool deflection, spindle runout, and environmental conditions like temperature and humidity must be managed. High-precision measurement tools, such as coordinate measuring machines (CMMs) and laser interferometers, are used to verify part dimensions and ensure compliance with standards like AS9100 and ISO 9001:2015.
Advanced Micro Machining Techniques
Several micro machining techniques are employed in aerospace manufacturing to address the precision and complexity requirements of small components. Below are the primary methods used:

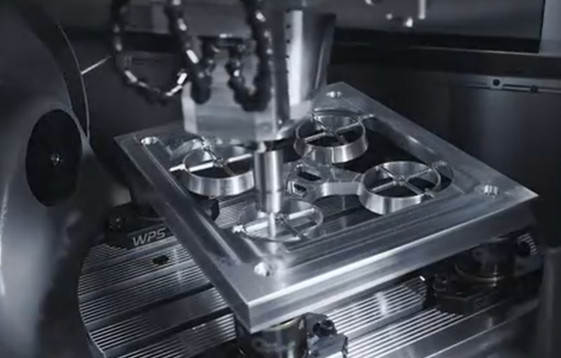

CNC Micro Milling
CNC micro milling uses high-speed spindles and ultra-small cutting tools to create intricate features on parts. Machines like the Haas CM-1 Compact Mill or KERN Micro Pro are designed for micro machining, with spindle speeds exceeding 50,000 RPM and tool diameters as small as 0.1 mm. This technique is ideal for producing micro molds, channels, and complex geometries with high aspect ratios.
Swiss Turning
Swiss turning is optimized for small, cylindrical aerospace components, such as pump shafts and fuel nozzles. Machines with bar feeders (16 mm to 38 mm) and up to 9 axes of motion can achieve tolerances of ±0.00015 inches. The process uses guide bushings to minimize deflection, ensuring high precision for miniature parts.
Micro-Electrical Discharge Machining (EDM)
Micro-EDM removes material through controlled electrical sparks, making it suitable for hard materials like titanium and Inconel. It achieves feature sizes as small as 1–2 microns with minimal thermal stress, ideal for producing micro holes in fuel injectors or intricate patterns in turbine components.
Laser Micro Machining
Laser micro machining uses focused laser beams to cut or etch materials with high precision. Systems like the LASERTEC PrecisionTool Series can achieve feature sizes below 10 microns with minimal heat-affected zones, making them suitable for brittle materials like ceramics and composites used in aerospace sensors.
Ultrasonic Machining
Ultrasonic machining employs high-frequency vibrations (0.1 to 20 μm amplitude) and abrasive particles to erode material. It is effective for machining glass, ceramics, and silicon carbide, achieving high surface quality and accuracy for components like satellite apertures.
Quality Control and Regulatory Compliance
The aerospace industry imposes rigorous quality standards to ensure component reliability and safety. Micro machined parts must comply with certifications such as AS9100:D and NADCAP, which require comprehensive documentation and traceability from raw material to finished product. Quality control involves:
- In-Process Monitoring: Real-time data on temperature, vibration, and tool load to detect deviations during machining.
- Non-Destructive Testing (NDT): Techniques like X-ray inspection and ultrasonic testing to verify internal integrity without damaging parts.
- Metrology: Use of CMMs, optical comparators, and laser scanners to measure dimensions with sub-micron accuracy.
- Traceability: Tracking each part’s material batch, machining parameters, and inspection results to ensure compliance.
These measures ensure that micro machined components meet the exacting standards required for aerospace applications, where even a minor defect can lead to catastrophic failure.
Equipment and Tooling Considerations
Micro machining requires specialized equipment designed for high precision and stability. Key considerations include:
| Equipment Type | Key Features | Applications |
|---|---|---|
| CNC Micro Milling Machines | High-speed spindles (50,000+ RPM), vibration-damping systems, sub-micron resolution | Micro molds, channels, complex geometries |
| Swiss Turning Machines | Multi-axis (7–9 axes), guide bushings, bar feeders (16–38 mm) | Cylindrical parts, fuel nozzles, pump shafts |
| Micro-EDM Systems | Micro-ion beams (1–2 μm), high-precision position control | Micro holes, intricate patterns |
| Laser Machining Systems | High-velocity lasers, minimal heat-affected zones | Brittle materials, micro vias, sensors |
Tooling is equally critical, with micro tools often having diameters as small as 0.1 mm. These tools are typically made from carbide, diamond, or boron carbide to withstand the abrasiveness of aerospace materials. Tool wear and deflection are significant concerns, requiring precise control of cutting parameters and regular tool inspection.
Process Optimization for Efficiency
Efficient micro machining in aerospace involves optimizing process parameters to balance precision, speed, and cost. Key strategies include:
- CAD/CAM Integration: Using software like Cimatron to translate 3D models into precise tool paths, minimizing programming errors.
- Simulation and Virtual Prototyping: Simulating machining processes to identify potential issues before production, reducing waste and rework.
- Automation: Employing robotic load/unload systems and lights-out manufacturing to enhance productivity and reduce human error.
- Tool Path Optimization: Minimizing rapid motion distances and optimizing cutting paths to reduce cycle times.
These strategies ensure that micro machining processes are both precise and cost-effective, meeting the aerospace industry’s demands for high-quality components with short lead times.
Applications in Aerospace
Micro machined components are integral to various aerospace systems, including:
- Engines: Fuel injectors, turbine blades, and compressor housings requiring micro-scale features for efficient fuel flow and thermal management.
- Avionics: Miniature sensors, actuators, and circuit board components for navigation and control systems.
- Structural Components: Lightweight, high-strength parts like ribs and spars with intricate geometries to optimize aerodynamics.
- Landing Gear: Precision-machined brackets and mounts to ensure structural integrity under high loads.
These applications demonstrate the critical role of micro machining in enabling the performance and safety of modern aerospace systems.
